• Wheels, 4 - 20" x 8.5" (50.8 cm x 21.6 cm) polished aluminum
• Tires, P275/55R20 all-season, blackwall
• Wheel, 17" (43.2 cm) full-size, steel spare
• Tire, spare P265/70R17 all-season, blackwall
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Luggage rack side rails, roof-mounted, Black
• Luggage rack center rails, roof-mounted, Black
• Fascia, front color-keyed
• Fascia, rear color-keyed with chrome strip and integrated trailer hitch cover
• Grille insert, bright chrome
• Assist steps, Black
• Moldings, color-keyed bodyside (Unique design with chrome strip included on LTZ.)
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Fog lamps, front, halogen
• Mirrors, outside heated power-adjustable, power-folding and driver-side auto-dimming with integrated turn signal indicators and ground illumination (Mirror caps are bright chrome. Includes memory function and curb-tilt.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wiper, rear intermittent with washer
• Door handles, bright chrome
• Liftgate with liftglass, rear door system with rear-window wiper/washer
• Liftgate, rear power-operated

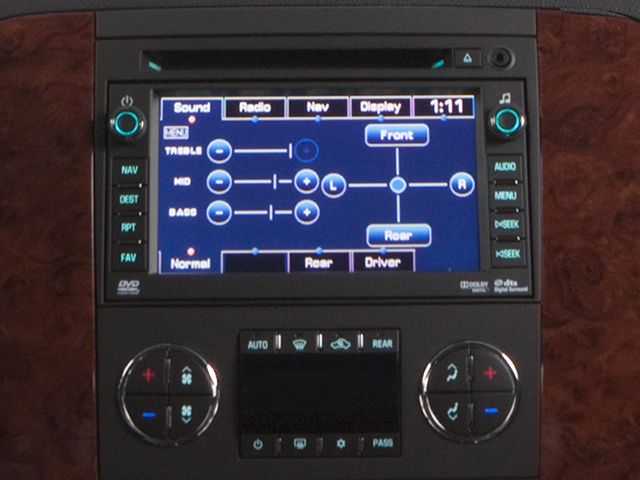

• Audio system with navigation, AM/FM/SiriusXM stereo with CD player 7-inch touch-screen Color Interface Display (CID), 30 gig usable Hard Drive storage space, with navigation and voice recognition, USB port, MP3 playback capability, Radio Data System (RDS), speed-compensated volume, time shift recording capability
• Audio system feature, USB port
• Audio system feature, Bose Centerpoint Surround Sound 10-speaker system
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media)
• SiriusXM Satellite Radio is standard on nearly all 2014 GM models. Enjoy a 3-month trial to the XM All Access package, with over 150 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. With All Access, listen to everything, everywhere, in your car and on your computer, smartphone or tablet. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at sirisusxm.com. Other fees and taxes will apply. All fees and programming subject to change.)
• NavTraffic is available in over 130 markets and works with your vehicle's navigation system to give you detailed traffic data right when you need it most - while you're driving. You'll avoid traffic tie-ups, save time and gas by getting alternate routes, and, in some cases, receive traffic speed and drive-time information. Plus, you can use NavTraffic at the same time you're enjoying SiriusXM Satellite Radio. You'll find that once you start using NavTraffic, you won't want to drive without it. (SiriusXM Satellite Radio and NavTraffic subscriptions sold separately or as a package after trial period. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at siriusxm.com. NavTraffic available only in select markets. For more information, see siriusxm.com/navtraffic.)
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system and HMI (Human Machine Interface), with specific steering wheel controls

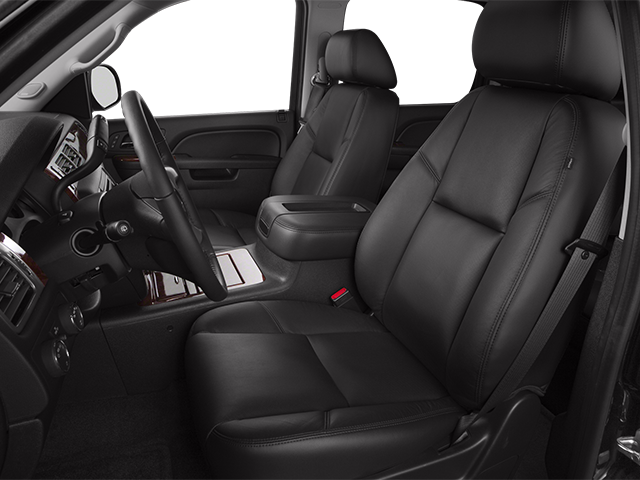

• Seats, front bucket with Perforated leather-appointed seating (AG1) 12-way power driver and (AG2) front passenger seat adjusters, power lumbar control, heated and cooled seats, 2-position driver memory (including lumbar), adjustable head restraints, storage pockets and floor console

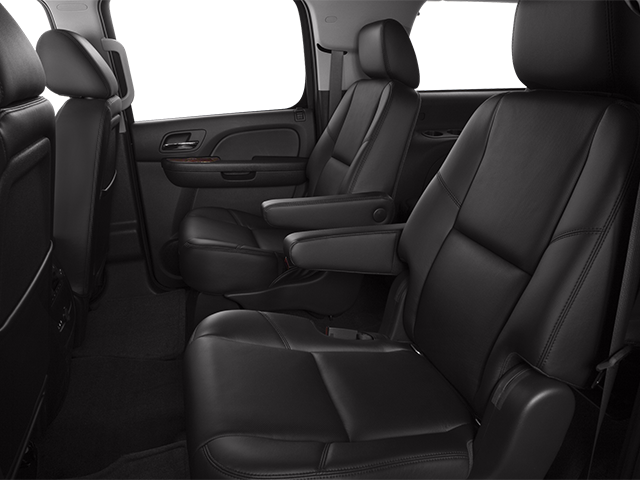

• Seats, second row bucket with leather-appointed seating, reclining
• Seat trim, perforated leather
• Seat adjuster, driver 6-way power
• Seat adjuster, front passenger 6-way power
• Seats, heated and cooled driver and front passenger
• Seats, heated second row
• Seat release, second row, power release only
• Seats, third row 50/50 split-bench, 3-passenger, removable, all-belts-to-seat

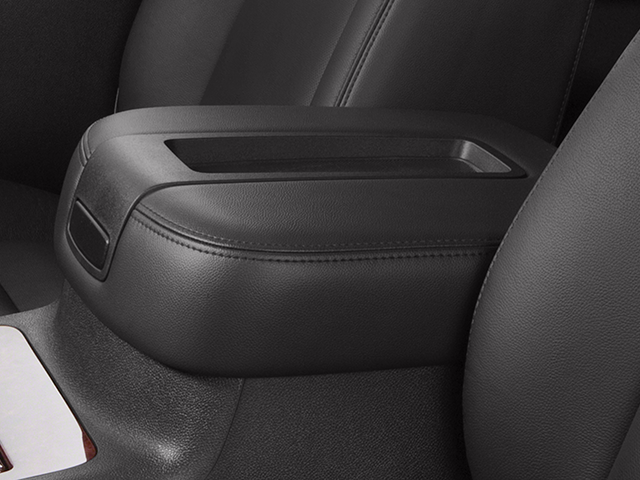

• Console, floor with storage area, cup holders and integrated second row audio controls (Includes woodgrain covered forward storage.)
• Floor mats, color-keyed carpeted first and second row, removable
• Floor covering, color-keyed carpeting

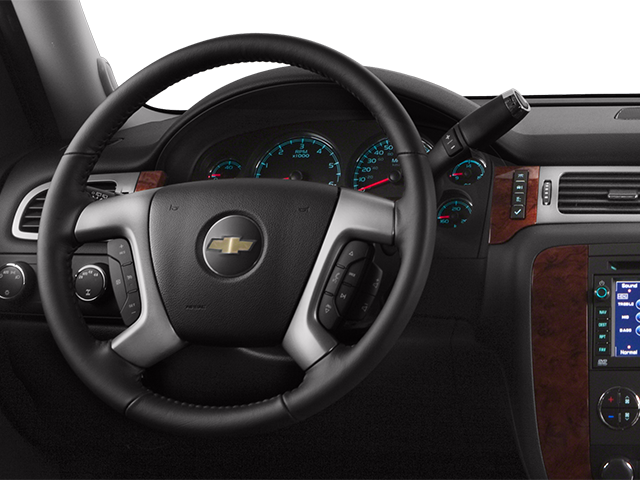

• Steering wheel, leather-wrapped
• Steering wheel, heated, leather-wrapped and color-keyed with theft-deterrent locking feature
• Steering wheel controls, mounted audio and cruise controls
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on

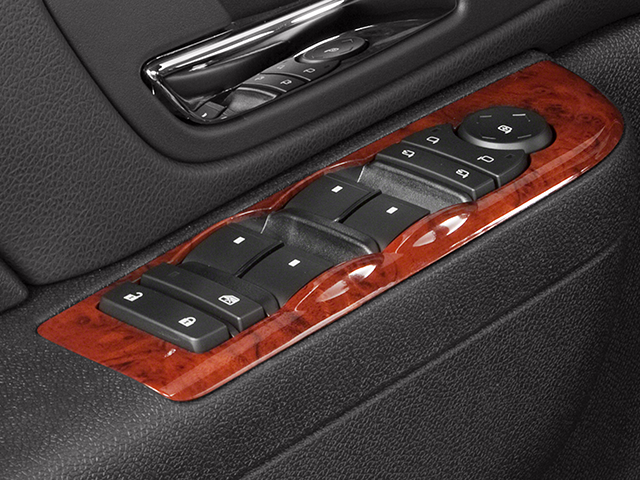

• Windows, power with driver Express-Down and lockout features
• Door locks, power programmable with lockout protection
• Remote vehicle starter system includes Remote Keyless Entry
• Cruise control, electronic with set and resume speed
• Universal Home Remote includes garage door opener, programmable
• Pedals, power-adjustable for accelerator and brake (Includes memory function with (AN3) front bucket seats.)
• Side Blind Zone Alert
• Theft-deterrent system, vehicle, PASS-Key III
• Air conditioning, tri-zone automatic climate control with individual climate settings for driver and right front passenger
• Air conditioning, rear auxiliary
• Heater, rear auxiliary with rear passenger heating ducts
• Defogger, rear-window electric
• Power outlets, 5 auxiliary, 12-volt includes 2 on the instrument panel, 1 in the cargo area, 1 inside the center console and 1 at the back of the console
• Mirror, inside rearview auto-dimming
• Headliner, cloth
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod
• Assist handles, front passenger and second row outboard
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Cargo mat

• StabiliTrak, stability control system with traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) 3-passenger third row bench seat (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, seat-mounted side-impact, driver and right-front passenger for thorax and pelvic protection (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, 6 months of Directions and Connections plan includes Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance and Turn-by-Turn Navigation". Also, updated footnote 1 to now read "Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions. (Visit onstar.com for details and system limitations.)
• Rear Vision Camera (Note: images appear on Navigation screen for units equipped with (UYS) AM/FM stereo with MP3 compatible CD/DVD player and navigation. For units not equipped with Navigation systems images will appear within rearview mirror.)
• Rear Park Assist, with audible warning
• Safety belts, 3-point, driver and front passenger in all seating positions
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Tire Pressure Monitor System air pressure sensors in each tire with pressure display in Driver Information Center (does not apply to spare tire)

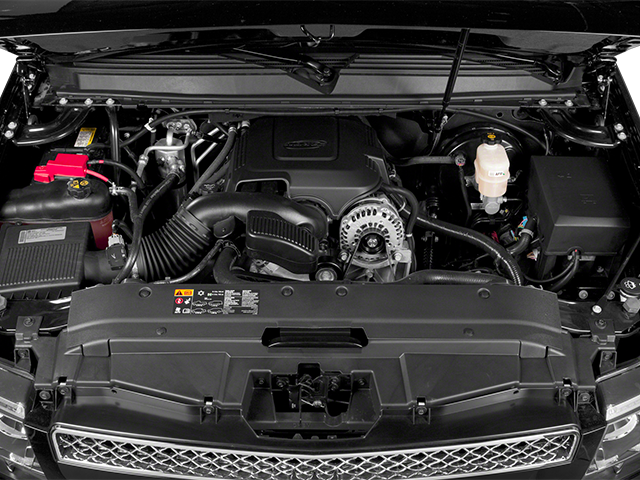

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [239 kW] @ 5400 rpm
• 335 lb-ft of torque [454 N-m] @ 4000 rpm
• with E85 ethanol - 326 hp [243 kW] @ 5300 rpm
• 348 lb-ft of torque [472 N-m] @ 4400 rpm)
• aluminum block (STD)

• LICENSE PLATE FRONT MOUNTING PACKAGE
• SUN ENTERTAINMENT AND DESTINATIONS PACKAGE (CF5) power sunroof (U42) rear seat DVD entertainment system and (DNU) third row DVD screen. LT also includes (UYS) audio system with navigation and (DD8) inside rearview auto-dimming mirror.
• REAR AXLE 3.42 RATIO
• ENGINE VORTEC 5.3L V8 SFI FLEXFUEL with Active Fuel Management capable of running on unleaded or up to 85% ethanol (with gas - 320 hp [239 kW] @ 5400 rpm 335 lb-ft of torque [454 N-m] @ 4000 rpm with E85 ethanol - 326 hp [243 kW] @ 5300 rpm 348 lb-ft of torque [472 N-m] @ 4400 rpm) aluminum block (STD)
• SEATS FRONT BUCKET WITH PERFORATED LEATHER-APPOINTED SEATING (AG1) 12-way power driver and (AG2) front passenger seat adjusters power lumbar control heated and cooled seats 2-position driver memory (including lumbar) adjustable head restraints storage pockets and floor console (STD)
• TIRES P275/55R20 ALL-SEASON BLACKWALL (STD)
• DVD SCREEN THIRD ROW Third row DVD with independent display capability.
• COOLING AUXILIARY TRANSMISSION OIL COOLER HEAVY-DUTY AIR-TO-OIL
• TRAILER BRAKE CONTROLLER INTEGRATED
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED WITH OVERDRIVE AND TOW/HAUL MODE (STD)
• AUDIO SYSTEM WITH NAVIGATION AM/FM/SIRIUSXM STEREO WITH CD PLAYER 7-inch touch-screen Color Interface Display (CID) 30 gig usable Hard Drive storage space with navigation and voice recognition USB port MP3 playback capability Radio Data System (RDS) speed-compensated volume time shift recording capability (STD)
• ASSIST STEPS POWER-RETRACTABLE WITH CHROME ACCENT STRIP
• SUNROOF POWER TILT-SLIDING with express-open and close and wind deflector
• SEATS SECOND ROW BUCKET WITH LEATHER-APPOINTED SEATING RECLINING (STD)
• COOLING EXTERNAL ENGINE OIL COOLER HEAVY-DUTY AIR-TO-OIL integral to driver side of radiator
• WHEELS 4 - 20 X 8.5 (50.8 CM X 21.6 CM) POLISHED ALUMINUM (STD)
• BLACK
• EBONY CUSTOM PERFORATED LEATHER-APPOINTED SEAT TRIM
• LTZ PREFERRED EQUIPMENT GROUP includes standard equipment
• ENTERTAINMENT SYSTEM REAR SEAT DVD PLAYER with remote control overhead display 2 sets of 2-channel wireless infrared headphones and auxiliary audio/video input jacks
• TRAILERING PACKAGE HEAVY-DUTY includes (KNP) auxiliary external transmission oil cooler and (KC4) engine oil cooler provides increased trailering capabilities.
• Air Suspension
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front Performance
• Tires - Rear Performance
• Conventional Spare Tire
• Luggage Rack
• Luggage Rack
• Running Boards/Side Steps
• Automatic Headlights
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Mirror Memory
• Power Folding Mirrors
• Privacy Glass
• Intermittent Wipers
• Remote Trunk Release
• Power Liftgate
• AM/FM Stereo
• CD Player
• Navigation System
• Satellite Radio
• Auxiliary Audio Input
• Hard Disk Drive Media Storage
• Requires Subscription
• Auxiliary Audio Input
• Premium Sound System
• Rear Seat Audio Controls
• Power Outlet
• Satellite Radio
• Requires Subscription
• Bluetooth® Connection
• Power Driver Seat
• Power Passenger Seat
• Leather Seats
• Bucket Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Cooled Front Seat(s)
• Bucket Seats
• Rear Bucket Seats
• Leather Seats
• Power Driver Seat
• Power Passenger Seat
• Heated Front Seat(s)
• Cooled Front Seat(s)
• Heated Rear Seat(s)
• 3rd Row Seat
• Pass-Through Rear Seat
• Rear Seat Audio Controls
• Woodgrain Interior Trim
• Floor Mats
• Adjustable Steering Wheel
• Leather Steering Wheel
• Leather Steering Wheel
• Heated Steering Wheel
• Cruise Control
• Steering Wheel Audio Controls
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Cruise Control
• Universal Garage Door Opener
• Adjustable Pedals
• Blind Spot Monitor
• Immobilizer
• Climate Control
• Multi-Zone A/C
• A/C
• Rear A/C
• A/C
• Rear A/C
• Rear Defrost
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Rear Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Rear Head Air Bag
• Front Side Air Bag
• Telematics
• Navigation from Telematics
• Requires Subscription
• Back-Up Camera
• Rear Parking Aid
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4200
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7400
• Gross Combined Wt Rating (lbs): 11500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Multi link
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 46.0
• Shock Absorber Diameter - Rear (mm): 46.0
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.8
• Tires
• Front Tire Order Code: QSS
• Rear Tire Order Code: QSS
• Spare Tire Order Code: ZRS
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2125
• Rear Tire Capacity (lbs): 2125
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.8
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.0
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 130.00
• Length, Overall w/rear bumper (in): 222.40
• Width, Max w/o mirrors (in): 79.10
• Height, Overall (in): 76.80
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 32.60
• Ground Clearance, Front (in): 10.50
• Ground Clearance, Rear (in): 9.10
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 101.80
• Cargo Area Length @ Floor to Seat 2 (in): 69.60
• Cargo Area Length @ Floor to Seat 3 (in): 35.60
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.10
• Cargo Box (Area) Height (in): 41.40
• Cargo Volume to Seat 1 (ft³): 137.4
• Cargo Volume to Seat 2 (ft³): 90.0
• Cargo Volume to Seat 3 (ft³): 45.8
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 41.10
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.50
• Second Head Room (in): 38.50
• Second Leg Room (in): 39.50
• Second Shoulder Room (in): 65.20
• Second Hip Room (in): 61.80
• Third Head Room (in): 38.10
• Third Leg Room (in): 34.90
• Third Shoulder Room (in): 64.70
• Third Hip Room (in): 49.40
• Summary
• Vehicle Name: Chevrolet Suburban
• Body Style: Sport Utility Vehicle
• Emissions
• EPA Greenhouse Gas Score: - TBD -
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.7
