• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• OnStar with 4G LTE and built-in Wi-Fi hotspot connects to the internet at 4G LTE speeds; Includes OnStar Data Trial for 3 months or 3GB (whichever comes first) (Visit www.onstar.com for coverage map, details and system limitations. Services vary by model. OnStar acts as a link to existing emergency service providers. Not all vehicles may transmit all crash data. Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T.)
• Radio, HD
• Remote Keyless Entry
• Seat trim, Cloth
• Single-slot CD/MP3 player
• SiriusXM Satellite Radio is standard on nearly all 2017 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Steering column, manual Tilt-Wheel
• Steering wheel audio controls

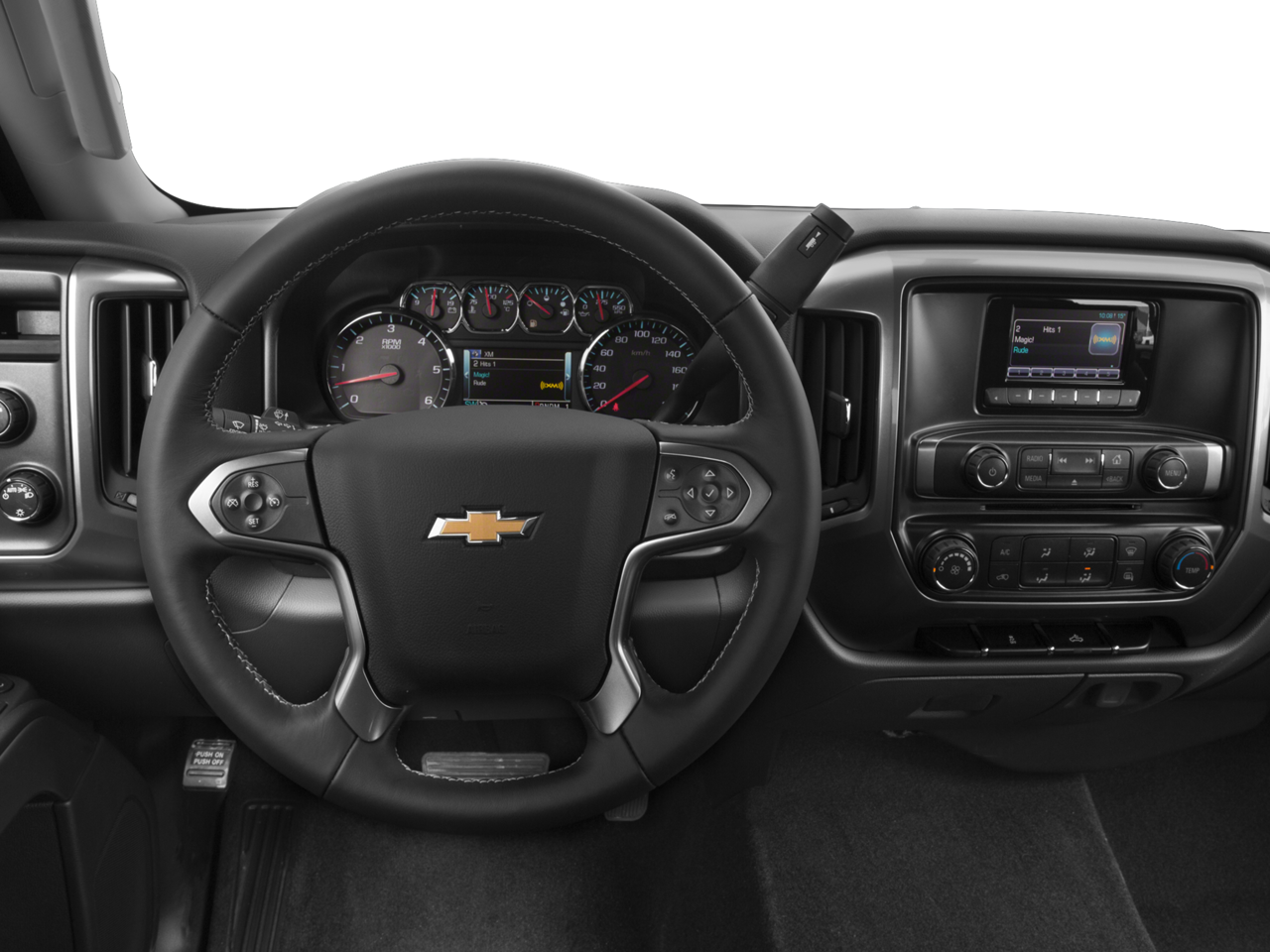

• Steering wheel, leather-wrapped with audio and cruise controls
• Visors, driver and front passenger illuminated vanity mirrors

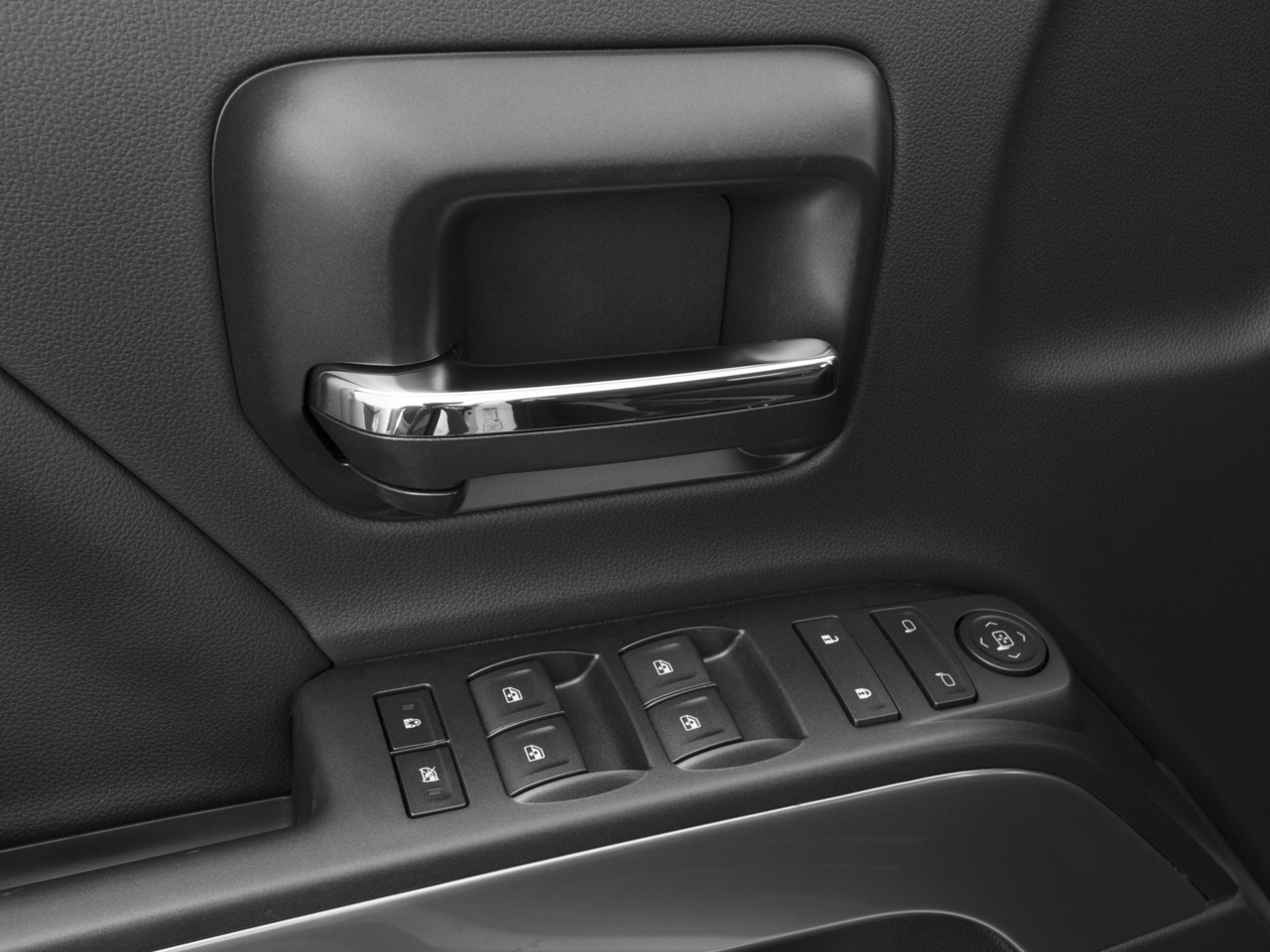

• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc with DuraLife brake rotors
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe

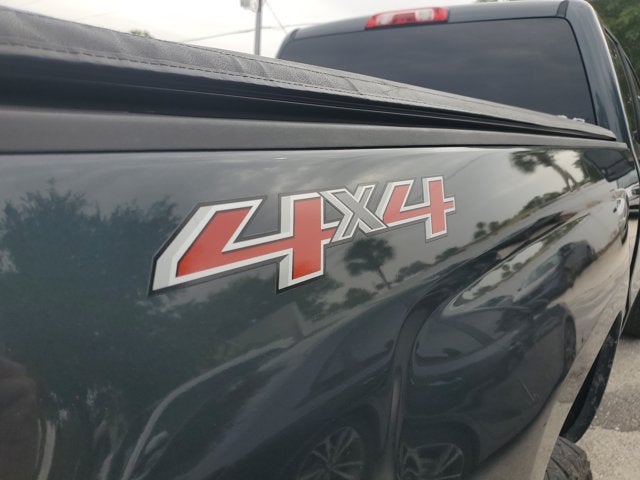

• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball with smart flow power steering system
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)

• Daytime Running Lamps with automatic exterior lamp control
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System (does not apply to spare tire)

WHEELS, 18" (45.7 CM) CHROMED ALUMINUM

• includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel.

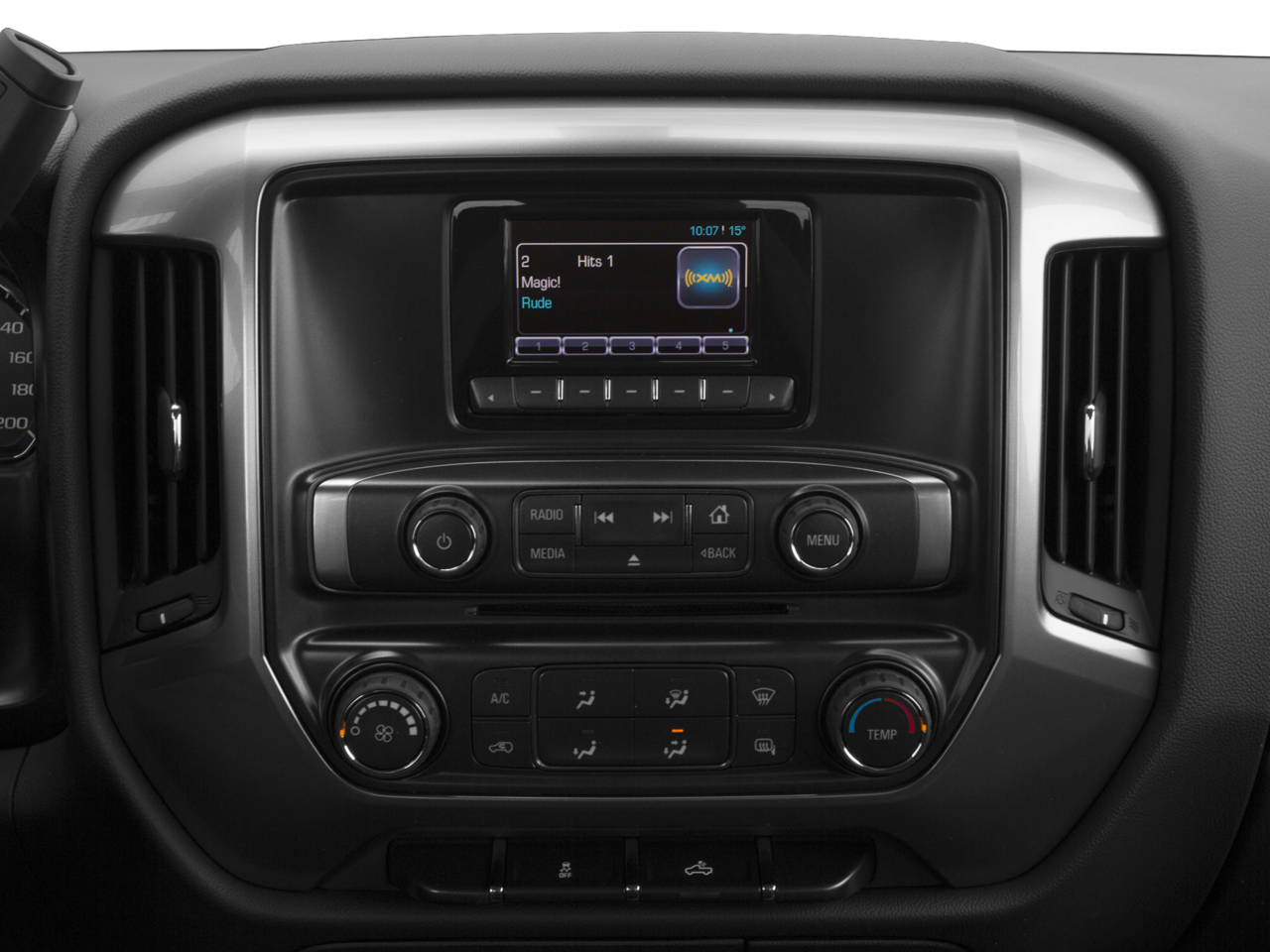

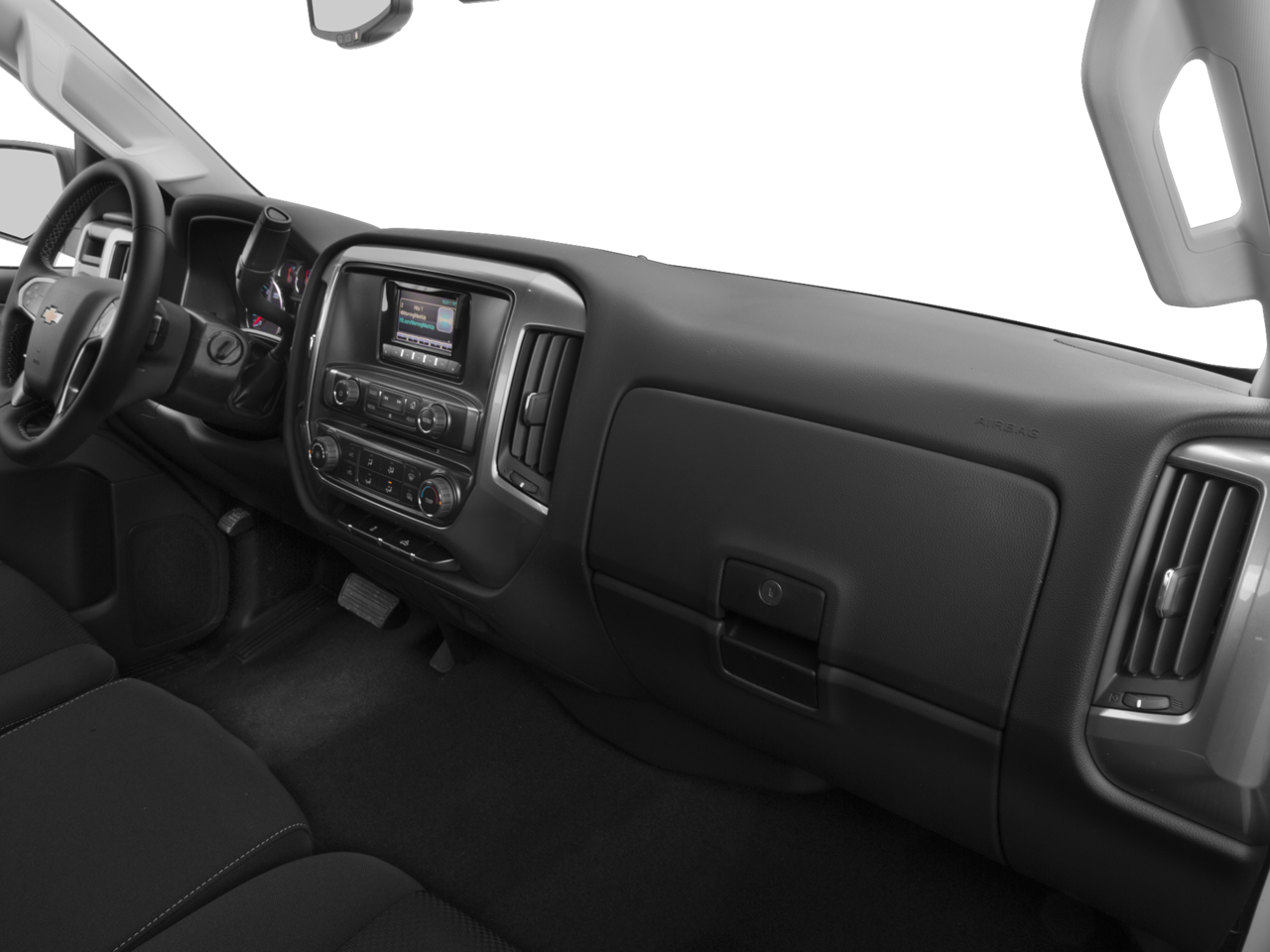

AUDIO SYSTEM, CHEVROLET MYLINK RADIO WITH NAVIGATION AND 8" DIAGONAL COLOR TOUCH-SCREEN, AM/FM STEREO

• with seek-and-scan and digital clock

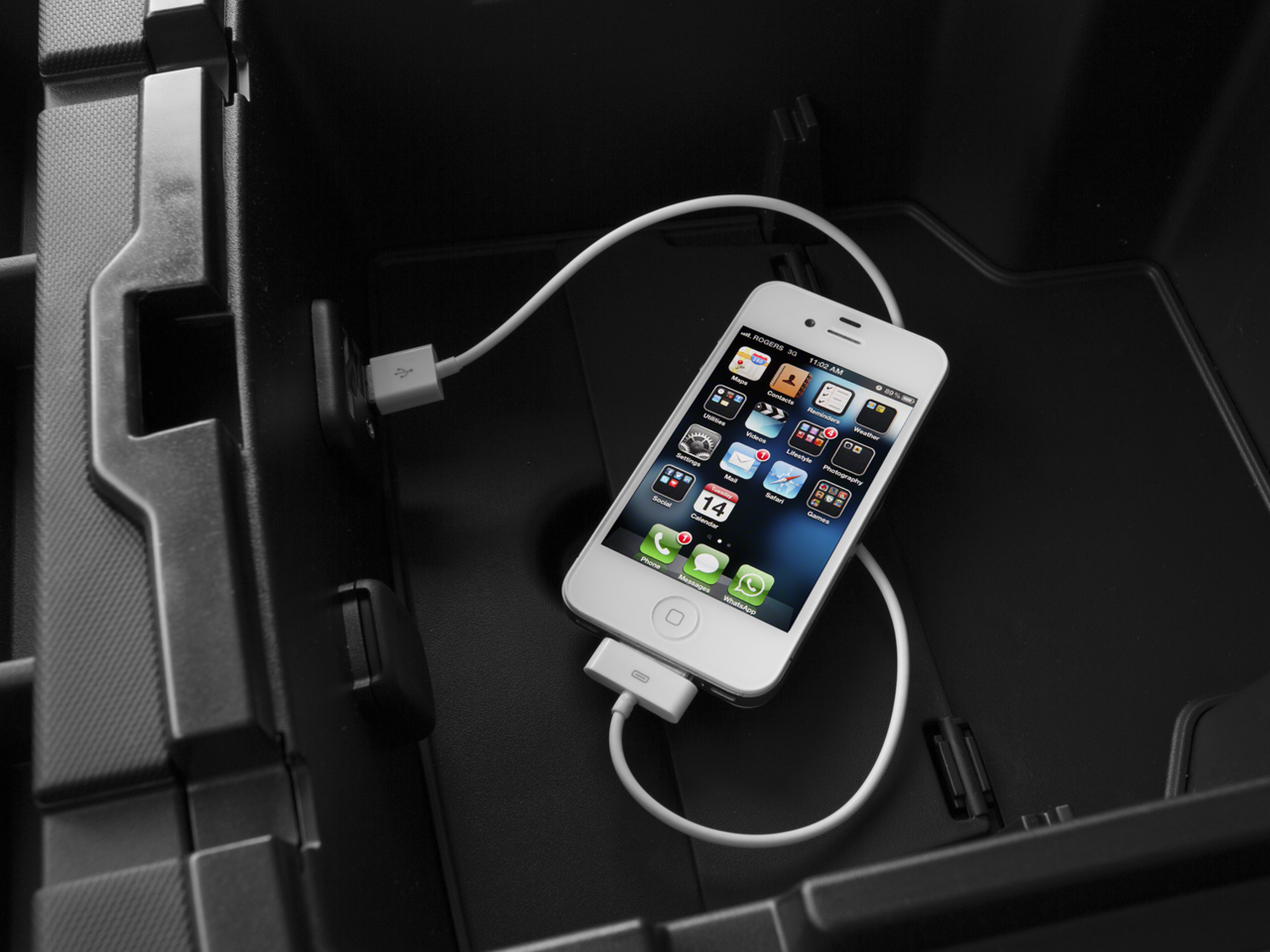

• includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; and Shop with the ability to browse
• select and install apps to your vehicle. Apps include Pandora
• iHeartRadio
• The Weather Channel and more.

SUSPENSION PACKAGE, STANDARD

• includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)

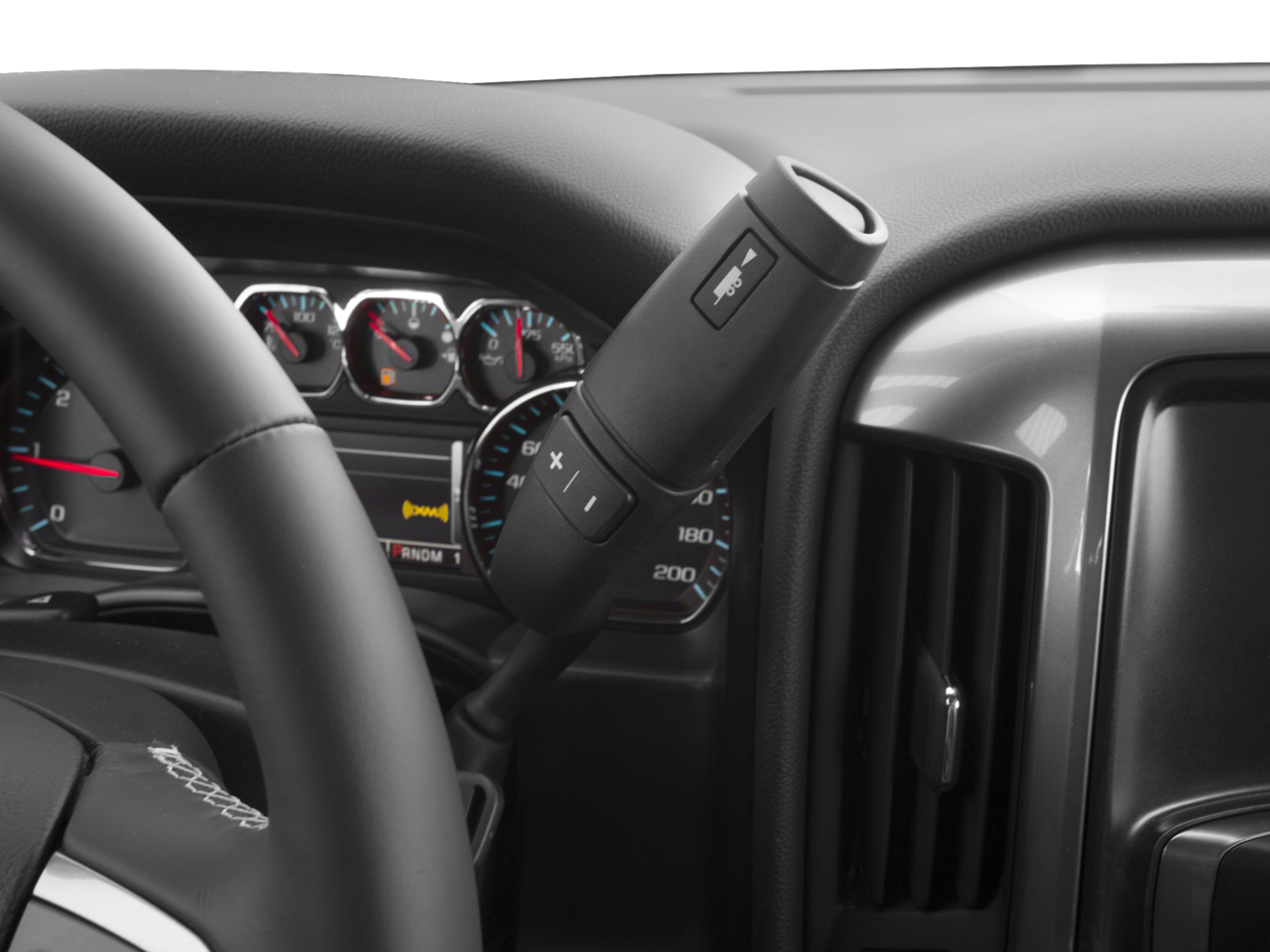

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

LT PREFERRED EQUIPMENT GROUP

• includes standard equipment

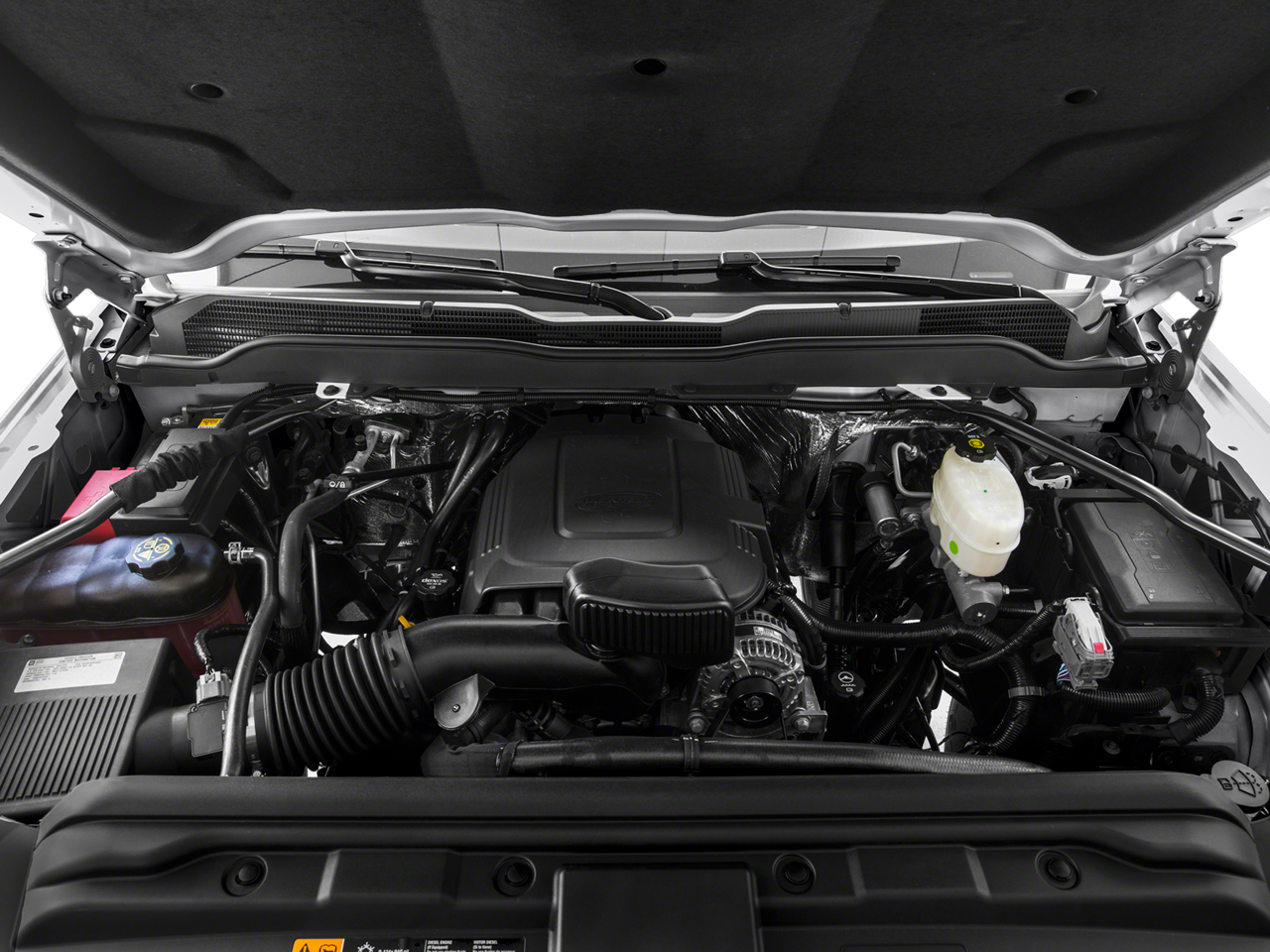

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI, E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)

TRAILERING WIRING PROVISIONS, FOR CAMPER, FIFTH WHEEL AND GOOSENECK TRAILER

• includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member

• WHEELS 18" (45.7 CM) CHROMED ALUMINUM includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel.
• AUDIO SYSTEM CHEVROLET MYLINK RADIO WITH NAVIGATION AND 8" DIAGONAL COLOR TOUCH-SCREEN AM/FM STEREO with seek-and-scan and digital clock includes Bluetooth® streaming audio for music and select phones; USB ports; auxiliary jack; voice-activated technology for radio and phone; and Shop with the ability to browse select and install apps to your vehicle. Apps include Pandora iHeartRadio The Weather Channel and more.
• LPO BEDLINER DROP IN
• LPO ASSIST STEPS - 4" CHROMED ROUND
• DEFOGGER REAR-WINDOW ELECTRIC
• LED LIGHTING CARGO BOX WITH SWITCH ON CENTER SWITCH BANK
• GRAPHITE METALLIC

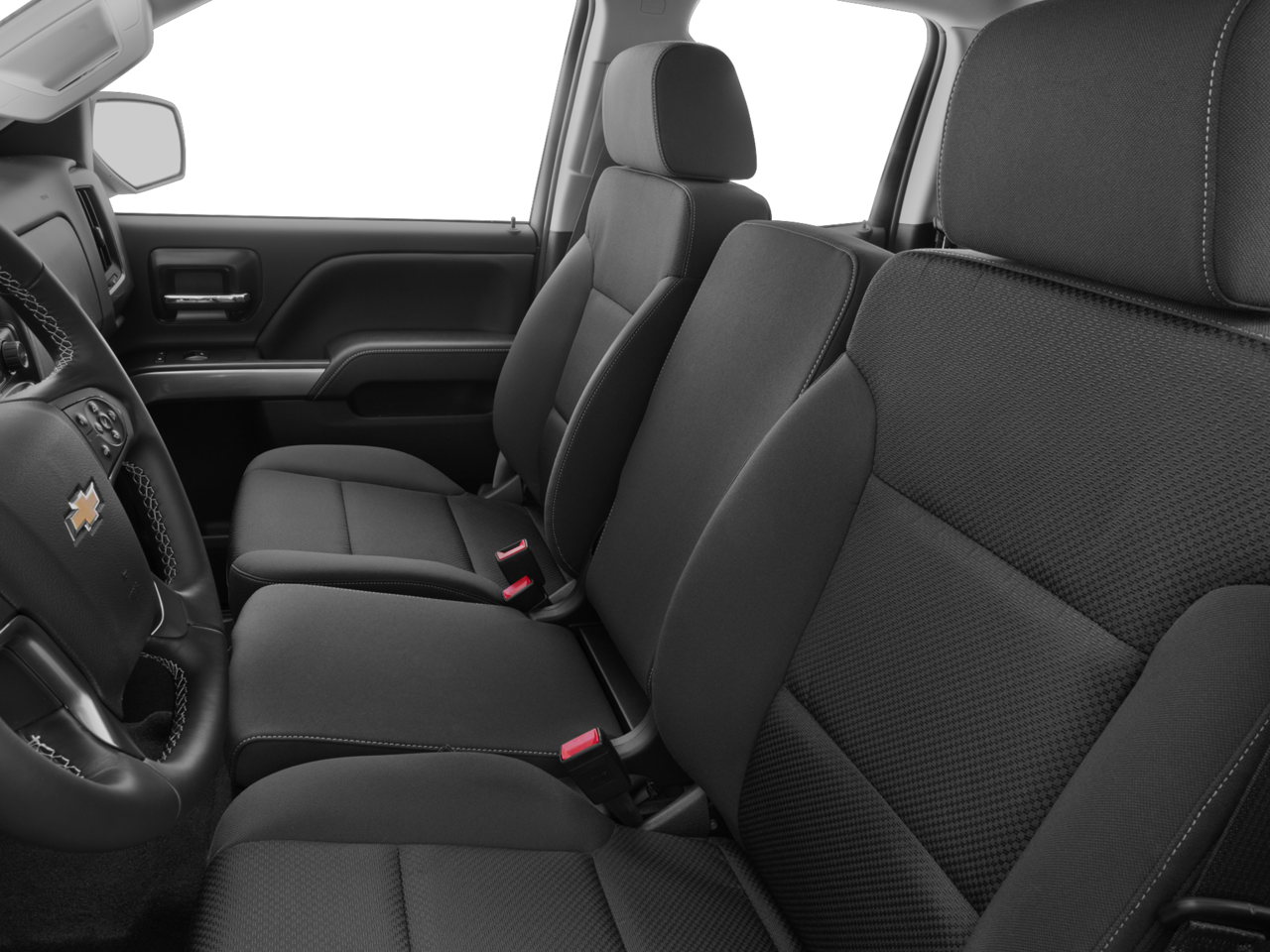

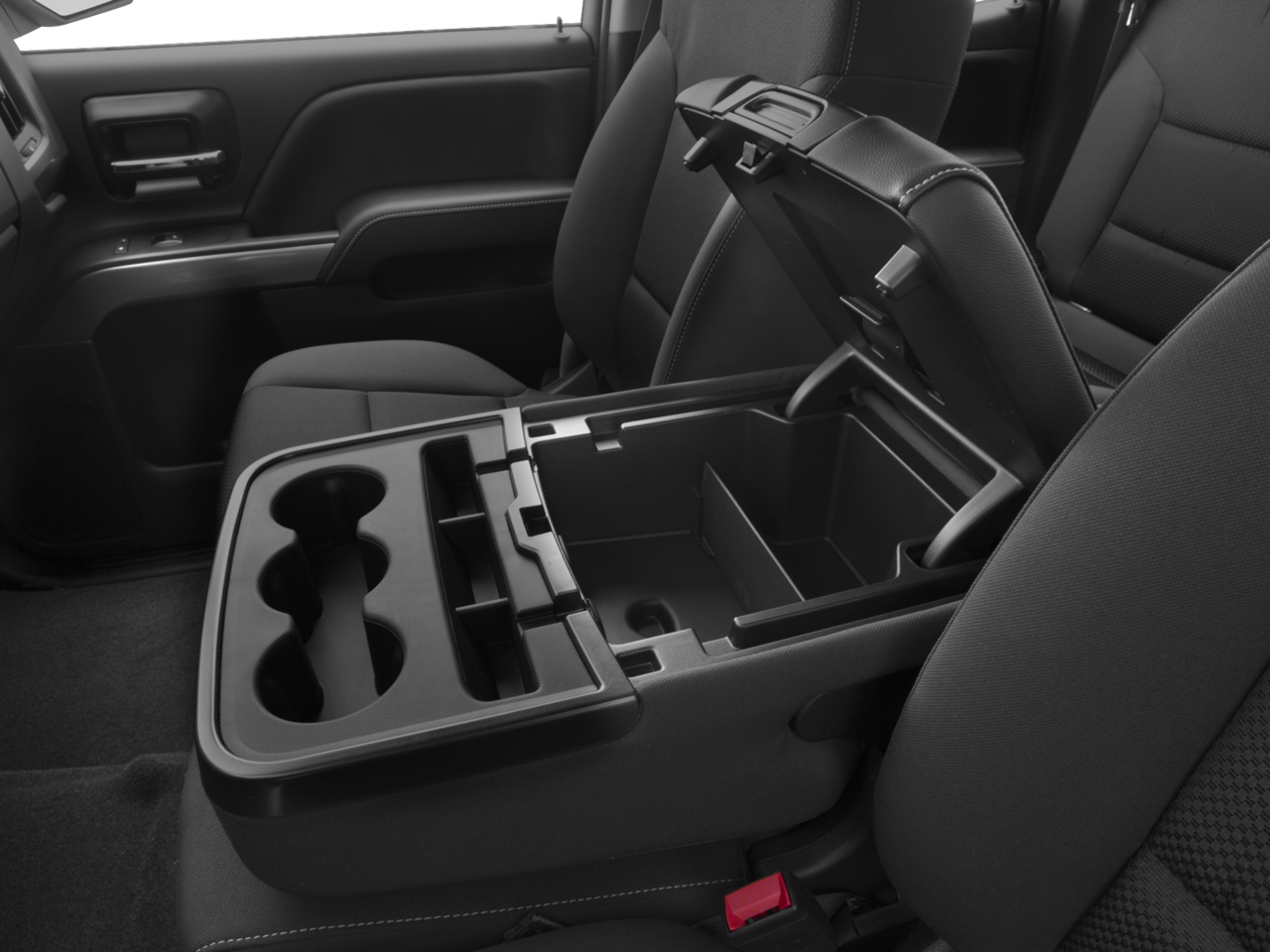

• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER. Available in cloth or leather. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar lockable storage compartment in seat cushion and storage pockets. (STD)
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• POWER OUTLET 110-VOLT AC
• REMOTE VEHICLE STARTER SYSTEM Includes (UTJ) Theft-deterrent system.)
• TRAILERING EQUIPMENT Trailering hitch platform 2.5" with a 2.0" insert for HD 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps backup lamps right and left turn signals an electric brake lead battery and a ground The trailer connector also includes the 4-way for use on trailers without brakes - park brake/turn lamps Includes (JL1) trailer brake controller.
• STEERING COLUMN MANUAL TILT-WHEEL AND TELESCOPING
• GVWR 9500 LBS. (4309 KG)
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

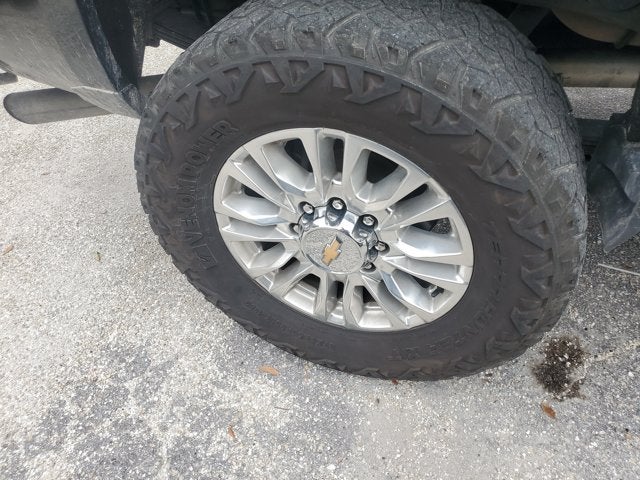

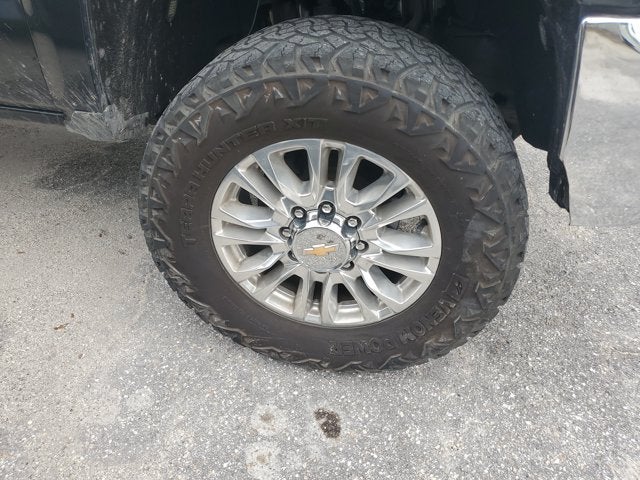

• TIRES LT265/70R18E ALL-TERRAIN BLACKWALL
• PAINT SOLID
• SEAT ADJUSTER DRIVER 10-WAY POWER
• CARGO TIE DOWNS (4) MOVABLE UPPER
• LT PREFERRED EQUIPMENT GROUP includes standard equipment
• AIR CONDITIONING DUAL-ZONE AUTOMATIC CLIMATE CONTROL
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) (STD)
• WHEEL 18" X 8" (45.7 CM X 20.3 CM) FULL-SIZE STEEL SPARE.
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER includes additional 7-way wiring harness is located at the rear of the pickup box attached to the rear frame cross member
• ALL STAR EDITION for Crew Cab and Double Cab includes (AG1) driver 10-way power seat adjuster with (AZ3) bench seat only (CJ2) dual-zone climate control (BTV) Remote Vehicle Starter system (C49) rear-window defogger (N37) manual tilt and telescopic steering column and (KI4) 110-volt power outlet (Z82) Trailering Package (JL1) trailer brake controller (VXJ) 4" round chrome tubular assist steps LPO and (T3U) front fog lamps
• JET BLACK CLOTH SEAT TRIM
• FOG LAMPS FRONT HALOGEN
• THEFT-DETERRENT SYSTEM UNAUTHORIZED ENTRY
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• HD Radio
• Telematics
• WiFi Hotspot
• Requires Subscription
• Bluetooth® Connection
• Split Bench Seat
• Driver Adjustable Lumbar
• Cloth Seats
• Pass-Through Rear Seat

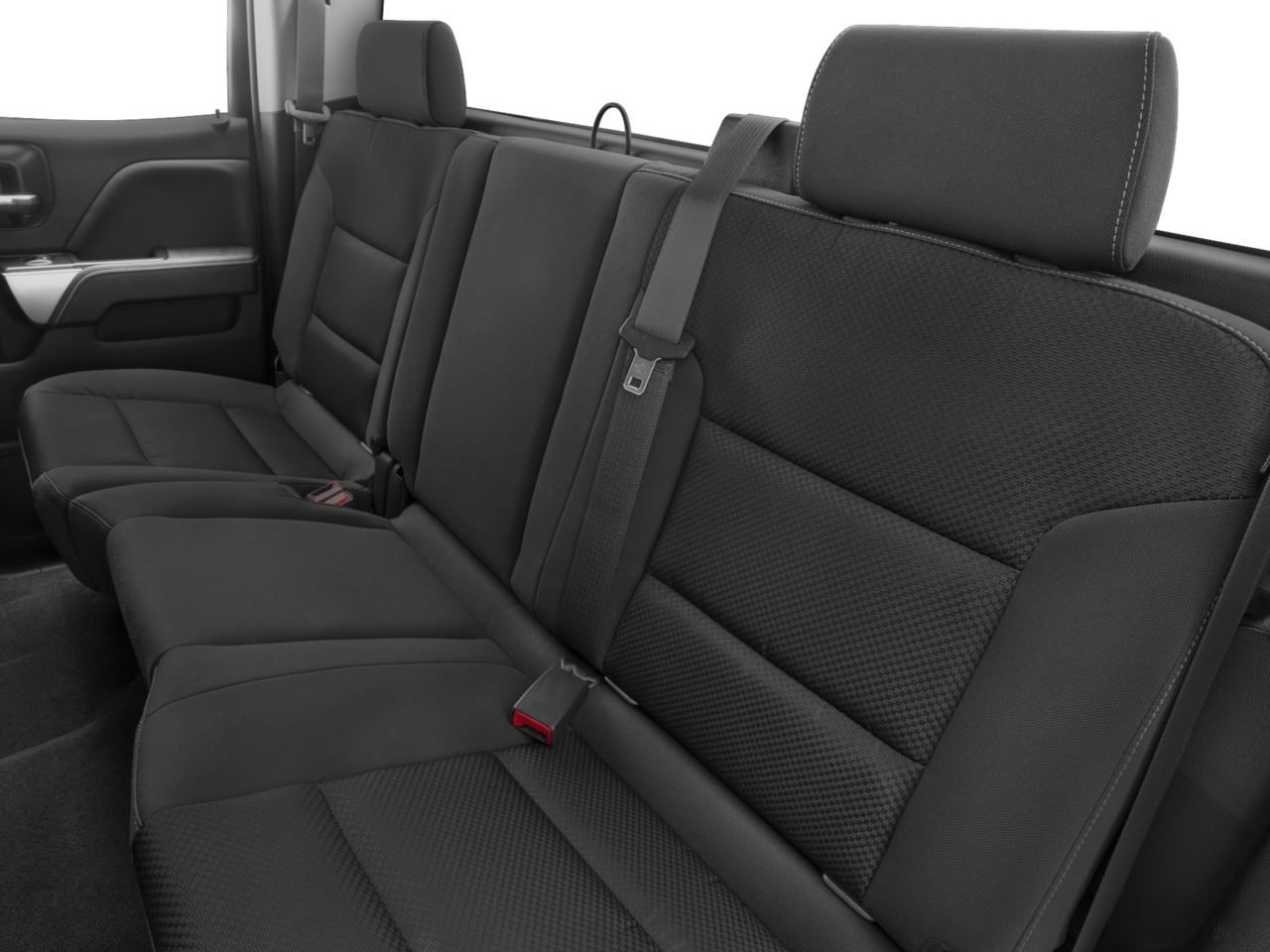

• Rear Bench Seat
• Floor Mats
• Adjustable Steering Wheel
• Cruise Control
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Power Door Locks
• Cruise Control
• Keyless Entry
• Power Door Locks
• A/C
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Telematics
• Navigation from Telematics
• Requires Subscription
• Back-Up Camera
• Driver Restriction Features
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.10
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 61.0
• Tailgate Width (in): 62.20
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 150
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 41.26
• Front Bumper to Back of Cab (in): 141.60
• Ground Clearance, Front (in): 9.53
• Ground Clearance, Rear (in): 9.53
• Height, Overall (in): 78.11
• Length, Overall w/o rear bumper (in): 230.00
• Wheelbase (in): 144.20
• Width, Max w/o mirrors (in): 80.51
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Interior Dimensions
• Front Head Room (in): 42.80
• Front Hip Room (in): 60.73
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Passenger Capacity: 6
• Second Head Room (in): 38.67
• Second Hip Room (in): 60.23
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 64.33
• Steering
• Steering Ratio (:1), On Center: 16.1
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63
• Body Style: Double Cab Pickup

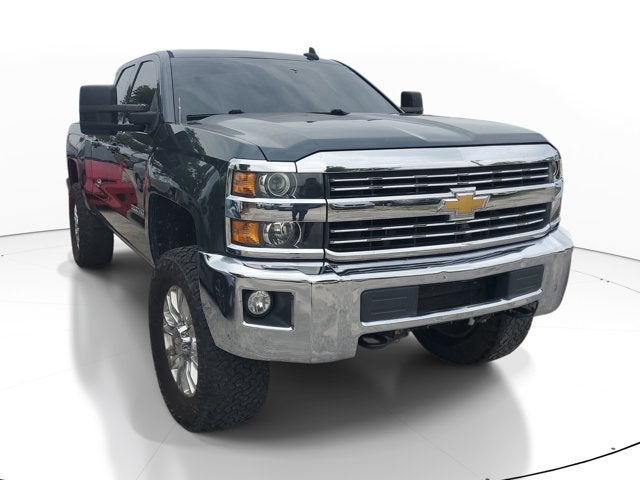

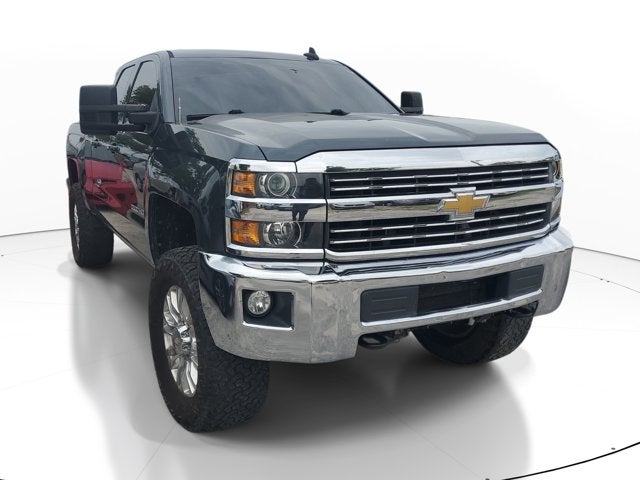

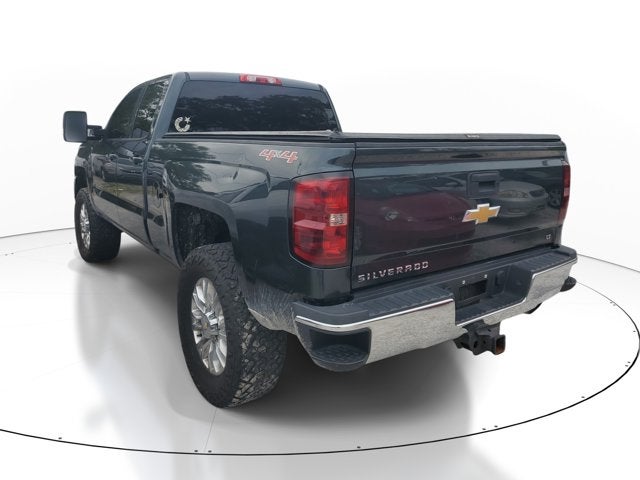

• Vehicle Name: Chevrolet Silverado 2500HD
• Suspension
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Stabilizer Bar Diameter - Front (in): 1.31
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Capacity (lbs): 5200
• Front Tire Order Code: QGM
• Front Tire Size: LT265/70R18E
• Rear Tire Capacity (lbs): 6200
• Rear Tire Order Code: QGM
• Rear Tire Size: LT265/70R18E
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3550
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14200
• Maximum Trailering Capacity (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Gross Combined Wt Rating (lbs): 21100
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Wheels
• Front Wheel Material: Aluminum
• Front Wheel Size (in): 18 X 8.0
• Rear Wheel Material: Aluminum
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 18 x 8.0
